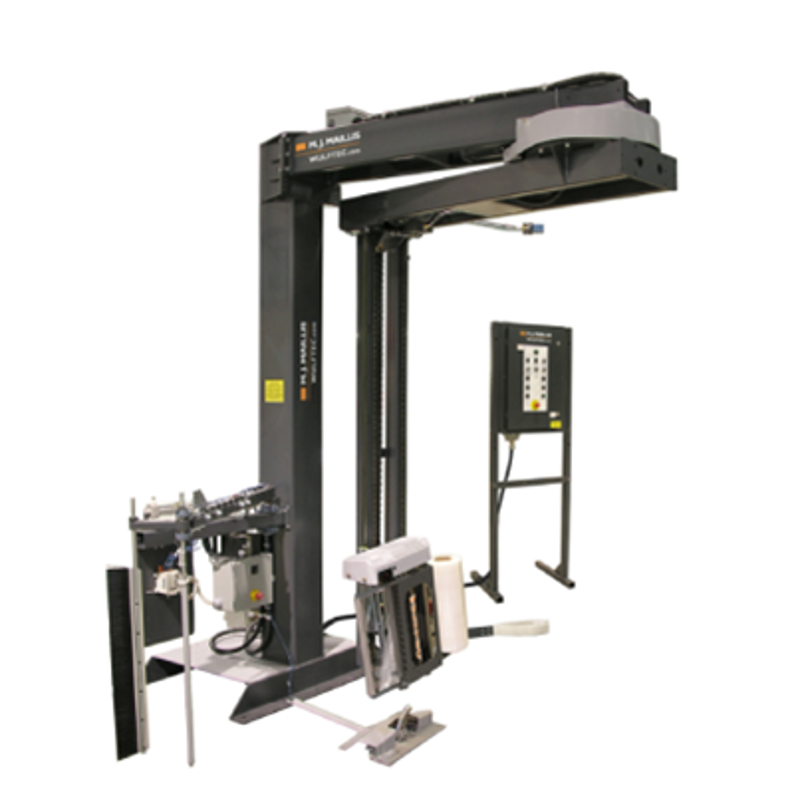

Wulftec WRTA150 Automatic Inline Rotary Arm Wrapping Machine

Stretch Wrapping Arm rotates around your pallet, making it the ideal choice for all pallet sizes

The Wulftec WRTA150 is an Automatic Inline Rotary tower ideal for wrapping unusual or unstable pallets. Since the load is placed on the floor, with the wrapping arm rotating around, the WRTA 150 is suited to tall, small, inboard, outboard, very light or very heavy products.

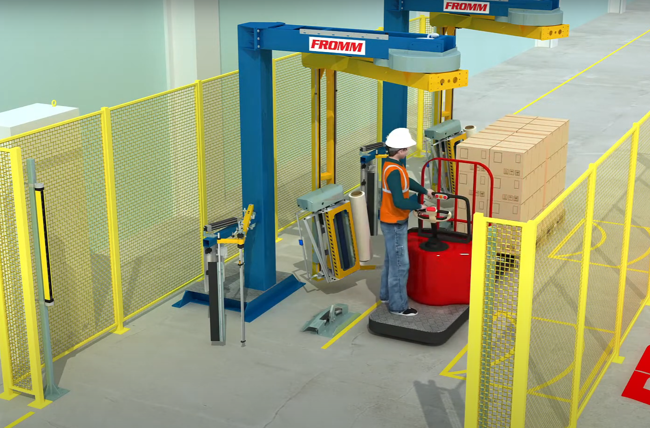

Placed inside a safety cell the start function can be achieved without the forklift driver getting off the truck. Multiple wrappers can be placed in a line and serviced with long tyne forklifts or wheelie trucks.

With options including bigger film carriage (750mm) hot or cold environment packages and special paints for various applications, the Wulftec WRTA150 is a great addition to your packaging line.

It features the FROMM two year warranty and can be upgraded to five years with a film contract included.

Two Year Warranty
Two Year Warranty
Simulation Testing
Simulation Testing
5 Star Rated
5 Star Rated
Environmentally Friendly
Environmentally Friendly

Features

  • Unlimited weight capacity
  • 100% structural steel construction
  • Stand-alone wrapping machine
  • 630mm ring gear with pinion drive
  • Automated lubrication system
  • Allen Bradley controls and touchscreen
  • 500mm NO-THREAD film carriage and 250% stretch capacity



Options

  • Safety System Category 3 and 4
  • Film Carriage 750mm
  • Rotary Arm Speed 17 RPM
  • Pneumatic Roping
  • Electronic Scales
  • Extensions - Increased height / width
  • Heat Seal - Cut and Wipe
  • Paint - custom colours &
    Protective paint

Benefits

  • Remote control operation
  • Stand-alone
  • One way or two way access
  • Single or double machine set up
  • Easy on screen diagnostics
  • Ideal for harsh environments
  • Non proprietary spare parts
Machine Specifications
Max. Load Weight

Unlimited

Max. Load Size

1400 x 1420 x 2200 mm

Pre-Stretch

250 %

Rotary Arm Speed

Up to 17 RPM (Std 12 RPM)

Controls

Allen Bradley

Throughput

50 pallets / hour (WRTA150) 100 pallets / hour (WRTA150 2C)

Film Carriage

500 mm (standard)

Air Supply Needed

3 CFM @ 80 PSI

Machine Options
Safety System

Category 3 and 4

Film Carriage

750 mm

Rotary Arm Speed

17 RPM

Pneumatic Roping

Available

Electronic Scales

Available

Extensions

Increased Height / Width

Heat Seal

Cut and Wipe

Paint

Custom Colours Protective Paint

Plastic stretch wrap is an integral material for safe and secure pallet load containment. FROMM’s high-quality, tear-resistant stretch wrap, including our Verde stretch films made from a 30% blend of recycled materials and 70% virgin materials, stretches further than ever—capable of significant stretch without compromising product integrity for suitable products. Bundled with our wrapping machines, our customers use less film, resulting in reduced packaging and waste disposal costs. For example, our Forza range offers up to 250% stretch, effectively reducing single-use plastics, making it an ideal choice for businesses focused on sustainability. The enhanced stretchability means less material is required overall, and precise product usage enabled by our wrapping machines minimizes unnecessary waste.

Reduce: Our Forza 12um film significantly reduces the amount of plastic needed, providing the same performance as thicker films. This helps lower plastic consumption and supports businesses in meeting their sustainability goals.

Reuse: While most stretch wrap is designed for single use, we encourage reusing leftover wrap for smaller, in-house applications where feasible, helping extend its life before disposal.

Recycle: Our Verde stretch films are made with 30% post-consumer recycled (PCR) material and are fully recyclable under the recycling code LLDPE (4). We promote proper recycling practices and work with clients to ensure that used wraps enter the recycling stream whenever possible.
