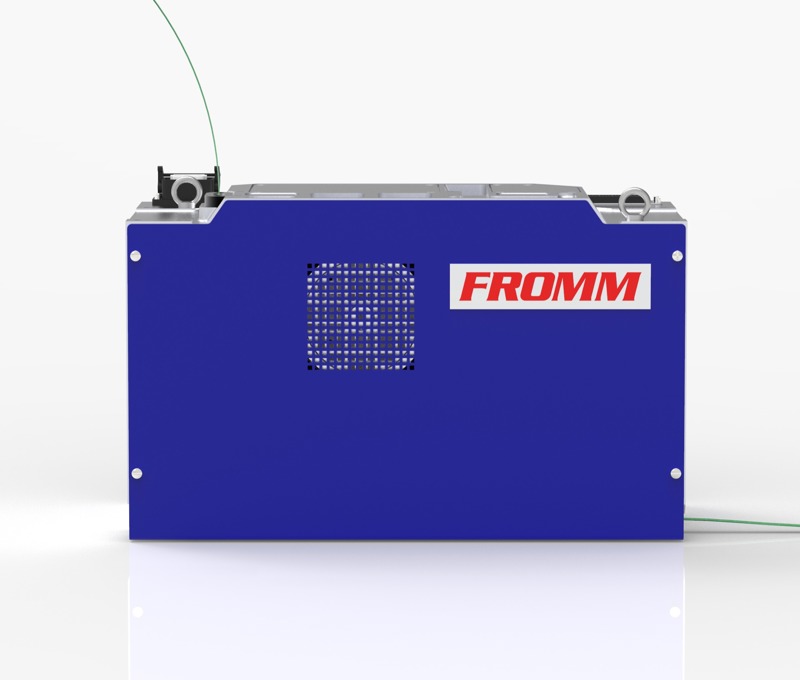

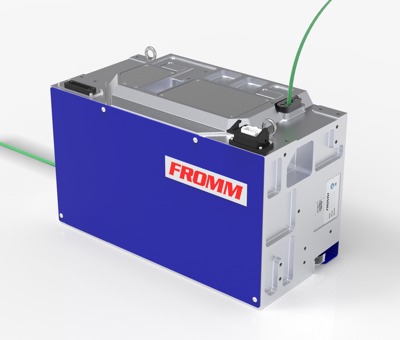

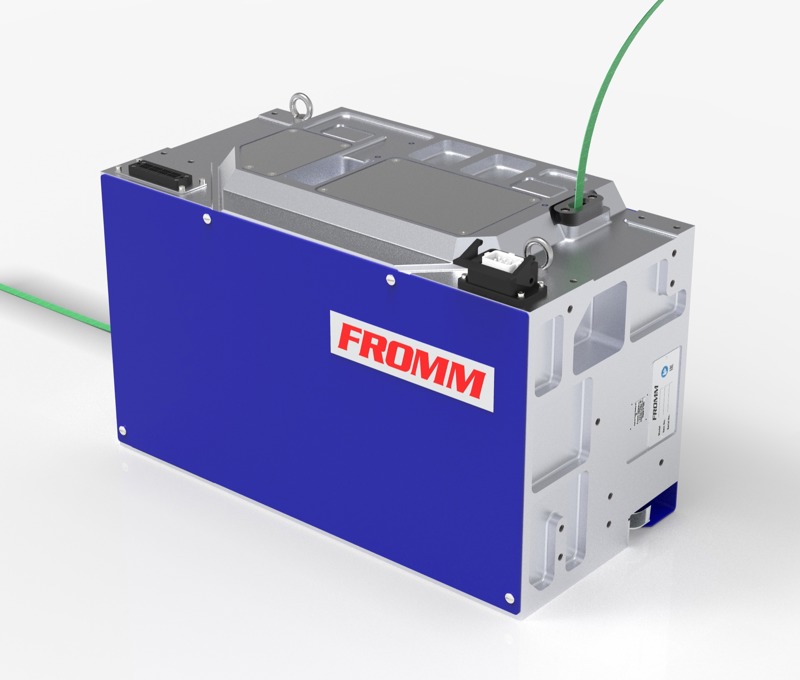

MH610 Polyester Strapping Head
The FROMM MH610 Polyester Strapping Head is designed for automatic, heavy-duty industrial polyester (PET) strapping applications. It can handle PET strapping widths ranging from 25 to 32 mm without any need for modifications.
With a high strap tension of up to 7000N, it is perfect for securing heavy, unitised goods in the aluminium and steel industries.
The MH610 is a high performing unit ideal for transitioning from heavy steel strapping applications to PET strapping.
Two Year Warranty
Simulation Testing
5 Star Rated
Environmentally Friendly
Features
- Compact and modular design
- One piece of aluminium cast housing
- Strap tension up to 7000N, adjustable
- Strap guide open feature

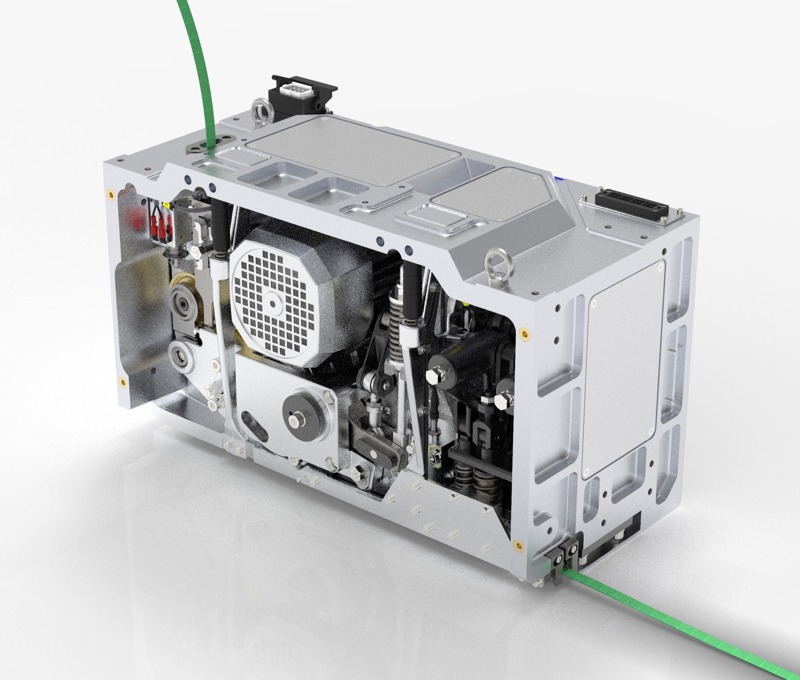

- Reliable separate feeding, tensioning and friction weld sealing systems
- Environment temperature monitoring resulting in consistent seal efficiency
- Use of state-of-the-art manufacturing, controlling and material technology

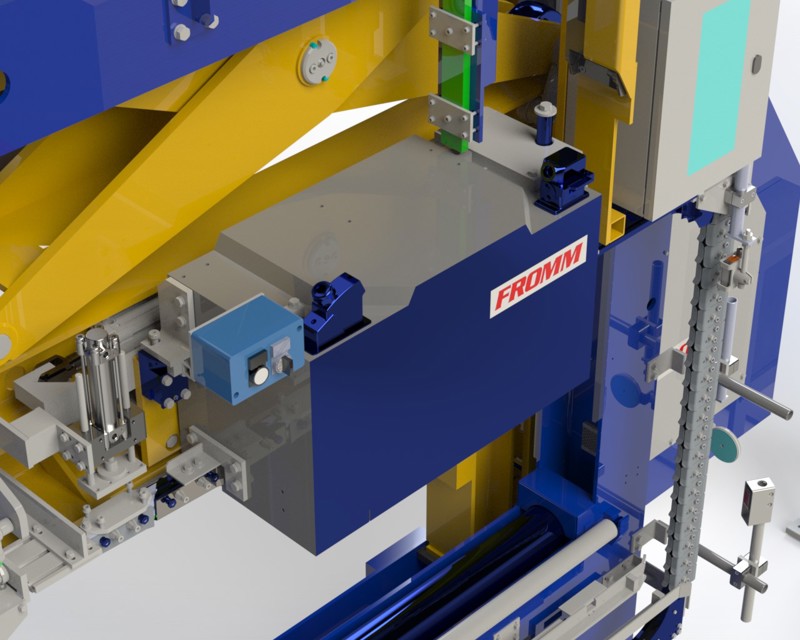

- Three side suspension points and plug connections for easy integration
- Durable and easy to maintain, ensuring high availability
Benefits
- Low maintenance
- Long service intervals
- Proven "FROMM" technology
- Can be retrofitted into other systems
- Low cost of spare parts
- Excellent seal efficiency
Machine Specification
25 - 32 mm
0.4 - 1.35 mm
Up to 85% of strap breaking strength
Friction weld
2000 - 7000 N
5.3 metres / second
W 250 x H 180 mm
W 3000 x H 3000 mm
415 V / 3 PE / 15
1.1 kW
24 V DC
L 615 x W 332 x H 450 mm
118 kg
Download library
Plastic Strapping Heads Brochure
Plastic Strapping Heads Brochure
FROMM plastic strapping is manufactured in one of our global production centres using almost 100% recycled polyester resin. Extruded on one of our state of the art production facilities, FROMM uses RPET resins with high IV values. Strapping can be offered on small 20 kg coils up to 250 kg super jumbo rolls.
Reuse: PET straps are not generally reused in their original form, but they contribute to a sustainable cycle. Once the strapping has served its purpose, it can be collected, recycled, and transformed into new, high-quality products, helping to minimise waste.
Reduce: By choosing lightweight PET straps, designed for our machines and tools, businesses can lower transportation emissions and decrease material usage, contributing to a more sustainable packaging solution.
Recycle: Fully recyclable, our PET straps support a circular economy. After use, they can be processed into new products, reducing landfill waste and promoting sustainability.
